Hydraulic Coining Presses - Gold Silver Coin Making Machines

Name: Hydraulic Coining Presses - Gold Silver Coin Making Machines
Brand: MACHINE TOOL TRADERS
Price: 185000.0 INR
Availability: InStock

Price 185000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydraulic Coining Presses - Gold Silver Coin Making Machines Specification

Product Type
Hydraulic Coining Presses

General Use
Gold and Silver Coin Making

Material
Mild Steel, Stainless Steel

Capacity
50 to 400 Ton

Weight (kg)
2500 - 8000 kg

Computerized
Yes

Control System
PLC Controlled

Cooling Mode
Water Cooling

Working Temperature
-10°C to 50°C

Accuracy
±0.01 mm

Engraving Area
Max Ø100 mm

Marking Depth
0.1 - 2 mm

Marking Speed
Up to 300 coins/hour

Linear Speed
---

Air Pressure
0.7 MPa (if required for ejector)

Power Supply
3 Phase, 380-415V, 50/60Hz

Frequency (MHz)
50/60

No Load Speed
---

Voltage
380-415V

Dimension (L*W*H)
2700 mm x 1200 mm x 2300 mm (Varies by model)

Color
Machine Grey / Custom

Pressing Force
50 - 4000 kN

Oil Tank Capacity
250-500 Litres

Cycle Time
8-10 seconds per operation

Main Pump Motor
7.5 to 22 kW

Ram Stroke
150-300 mm

Frame Type
H-Frame casting/welded

Operation Mode
Manual/Automatic

Application
Mint, Jewellery Manufacturing, Industrial Coining

Surface Finish
High Gloss Chromed Platen

Safety Features
Emergency Stop, Two-Hand Control, Overload Protection

Daylight Opening
300-600 mm

Noise Level
< 75 dB

Hydraulic Coining Presses - Gold Silver Coin Making Machines Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Week

Delivery Time
4 Week

Main Domestic Market
All India

About Hydraulic Coining Presses - Gold Silver Coin Making Machines

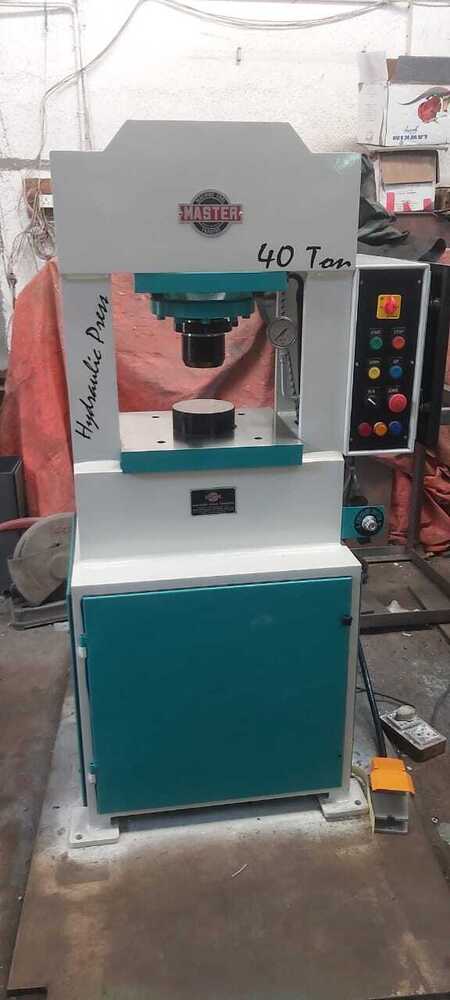

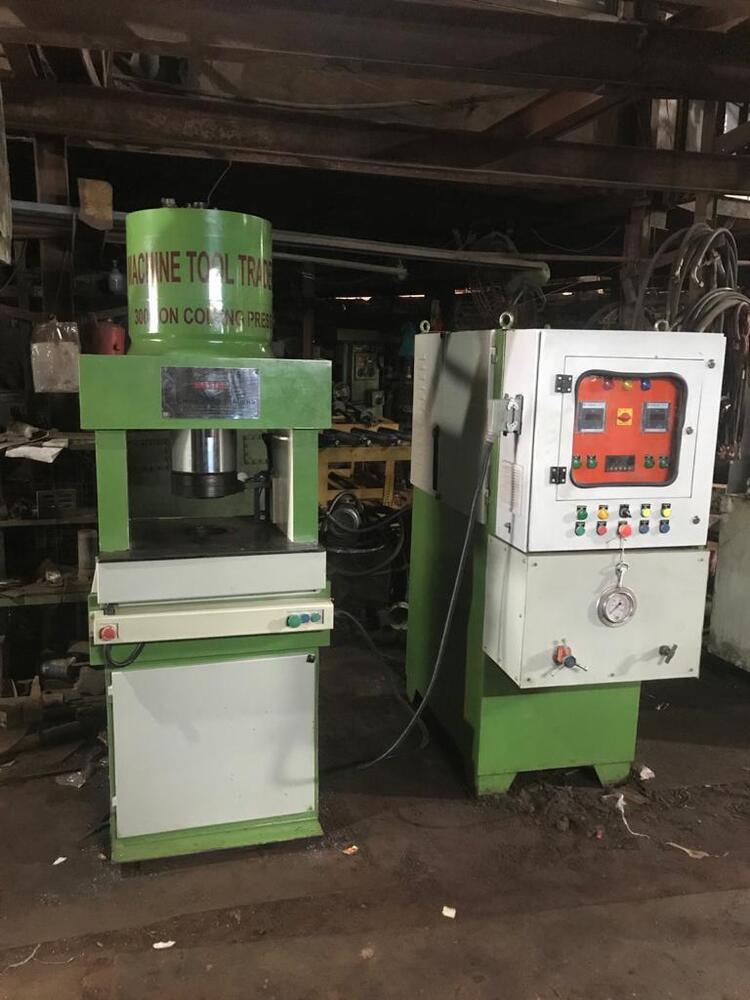

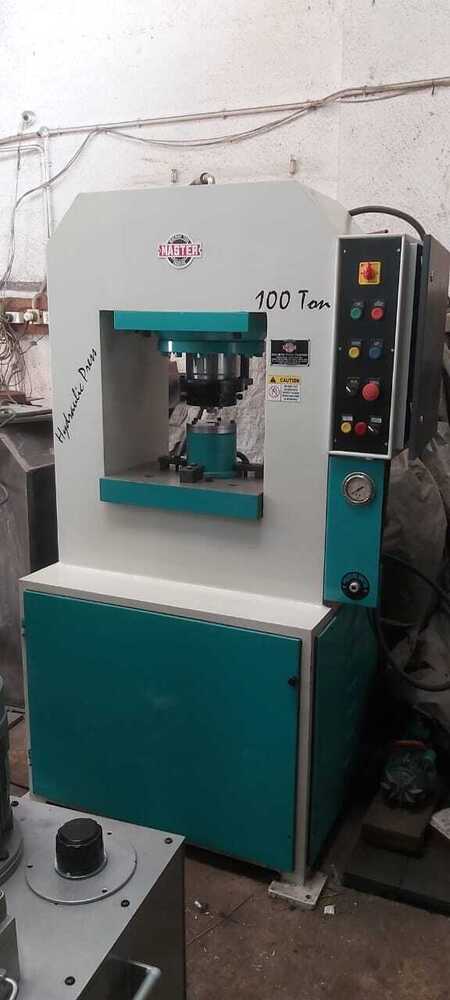

Hydraulic Coining Press - We have wide range of hydraulic coining press from coin blanking to coin embossing presses from 20 tons up to 300 tons capacity to mint gold and silver coins from 1 gram up to 250 grams in size.

Ouris equipped with ejector cylinder for auto ejection of coin for easy removal without hammering. This feature offers better final finish of the coin. This hydraulic coining press is suitable for making gold and silver coins from 1.0 gram to 100.0 grams in weight and is powered by 10.0 HP electricals and is supplied complete with suitable electricals and control panel. This coining press design incorporates pressure adjustment control with timer to adjust final pressure time before return stroke. It can be operated by push button control as well as in automatic single cycle mode.

Besides the hydraulic coining press and precision sheet rolling mill, we can also supply you induction and resistance gold and silver melter, gold and silver bar cutting machine and vibrator polisher machines required to set up complete gold and silver coin making plant.

Advanced Coining Machine Technology

These coin making presses use robust hydraulic systems and rigid H-frame casting or welded structures for durability. With high-gloss chromed platens and water cooling, they ensure top-tier surface finish and operational stability. PLC controls, safety interlocks, and two-hand operation provide both precision and operator safety during minting or jewellery processes.

Flexible Operation Modes

Operators can choose manual, semi-automatic, or fully automatic modes to suit production needs. The machines are suitable for industrial coining, jewellery, and mint facilities, handling various precious metals with customized capacities and frame options to match the requirements of dealers, exporters, manufacturers, and retailers.

FAQs of Hydraulic Coining Presses - Gold Silver Coin Making Machines:

Q: How does the hydraulic coining press ensure precision during coin minting?

A: The machine utilizes advanced hydraulic controls and PLC systems, combined with high gloss chromed platens and robust frame construction, to achieve precise coin dimensions with an accuracy of 0.01 mm.

Q: What is the manufacturing process for gold and silver coins using this press?

A: Coins are manufactured by placing blank discs into the machine, which then applies pressing force between 504000 kN through a ram stroke of 150300 mm. The PLC-controlled cycle ensures consistent marking depth (0.12 mm) and high-speed production, yielding up to 300 coins per hour.

Q: When is a manual or automatic operation mode preferred for coin making?

A: Manual mode is commonly used for prototyping or intricate jewellery applications requiring operator control, while automatic or semi-automatic modes are preferred for high-volume industrial coining or mint operations to improve efficiency and throughput.

Q: Where can these hydraulic coining presses be used?

A: These machines are ideal for minting facilities, jewellery manufacturing plants, and industrial coining operations. They are suitable for use by producers, exporters, dealers, retailers, and wholesalers, especially within India and other global markets.

Q: What are the main benefits of using PLC controlled hydraulic coining presses?

A: PLC control provides streamlined automation, increased reproducibility, and minimal errors during the coin production process, while integrated safety features enhance operator security and protect machinery integrity.

Q: How does the water cooling system contribute to machine performance?

A: Water cooling maintains optimal working temperature (-10C to 50C), ensuring efficient hydraulic operation, consistent surface finish, and extended equipment lifespan during intensive use.
